Strip Lighting - Interior
Inter Dome DRS20 (Round) Linear Light

Inter Dome DRS20 (Round) Linear Light

$0
Contact Us For Pricing
Brand:
Vibia
Product Code:
DRS20X000.AO-IN10XX05.FP27.F
Typical Availability

1-2 Weeks

Description

ONLY AVAILABLE DIRECT - CONTACT US FOR PRICING

Engineered for precision, the Inter Linear Series offers refined profiles, lasting performance, and exceptional colour consistency, from day one and for years to come.

With CRI95+ (R9>90) and SDCM≤1, the Inter delivers superior colour fidelity and uniformity across its 50,000h L90B10 lifetime.

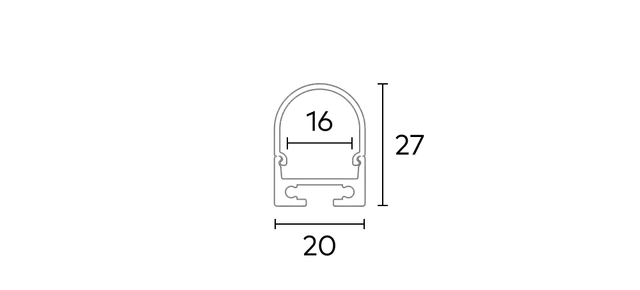

The Dome Round and Square profiles deliver both forward and side illumination, lighting vertical and surrounding surfaces. This wide light distribution softens contrast and enhances the overall brightness and openness of a space.

All LED strip lighting requires a suitable driver. This is sold separately as it is determined on the length and wattage of the LED strips you are controlling. Please get in contact with us to discuss your requirements.

Power

5W/m I 10W/m I 15W/m I 20W/m

|
Voltage

24V

Material

Anodised Aluminum I PC Diffuser

Suitability

Indoor

Dimensions

Length 1000mm | Width 20mm | Height 27mm

Finish Colour

Aluminium

Colour Temperature

2700K I 3000K I 4000K I 2700K-6500K (Tunable White) I RGB I RGBW

CRI

95+ (R9: >0)

Colour Deviation

Lumen Output

Up to 2005lm/m

LED Type

LED Strip Lighting

Beam Angle

130º

Dimmable

Yes

Expected Lifetime

>50,000h L90B10

Warranty

5 Years

IP Rating

IP20

Cutout Size

Download Spec Sheet
