All
Strip Lighting - Interior
Inter Angled AS16 Linear Light

Inter Angled AS16 Linear Light

$0
Contact Us For Pricing
Brand:
Unios
Product Code:
AS16X000.BO-IN10XX05.FP27.F
Typical Availability

1-2 Weeks

Description

ONLY AVAILABLE DIRECT - CONTACT US FOR PRICING

Refined, reliable, and built for precision. The Inter Linear Series combines sleek profiles with long-lasting performance and industry-leading colour consistency.

With CRI95+ (R9>90) and SDCM≤1, it delivers true to life colours and uniform lighting throughout its 50,000h L90B10 lifetime.

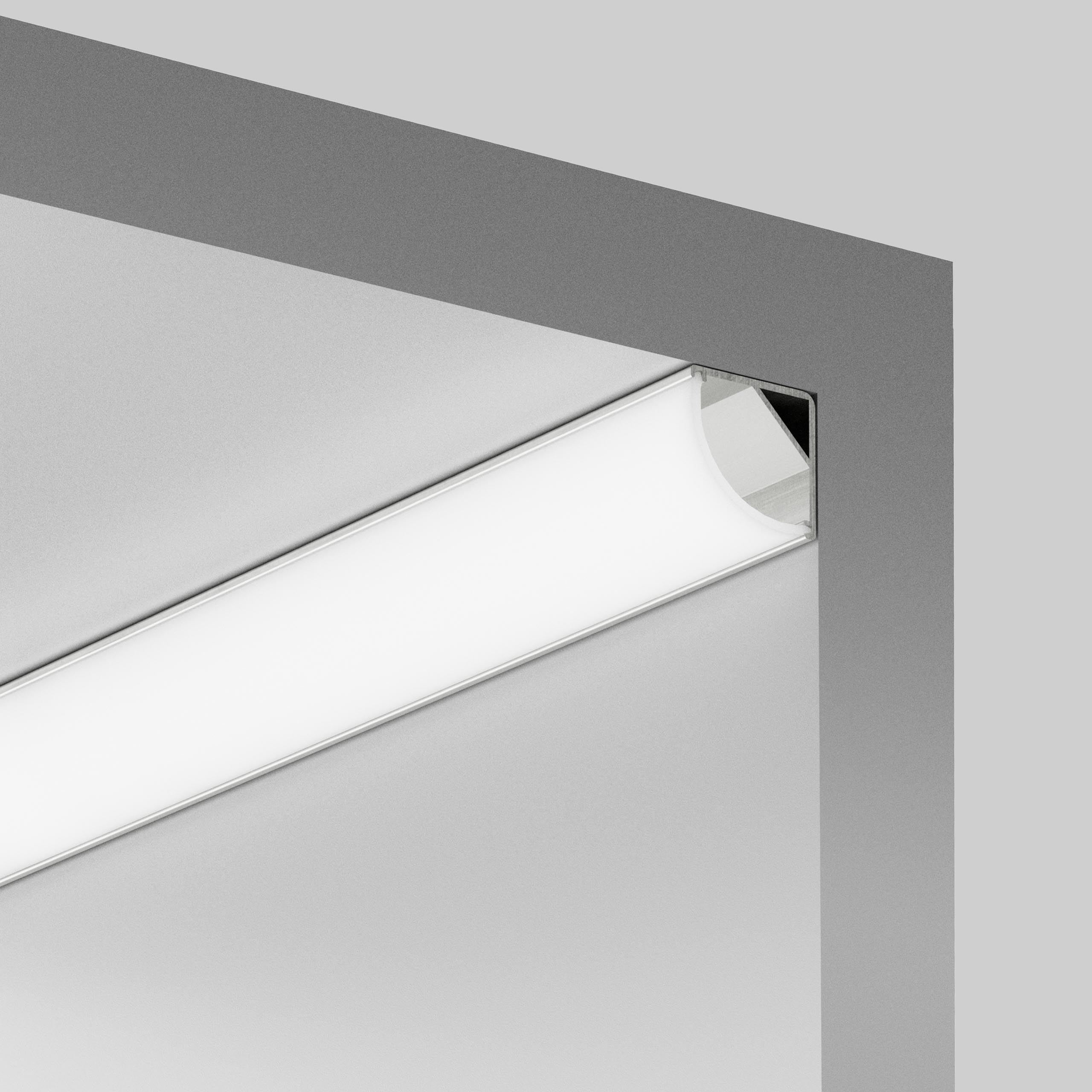

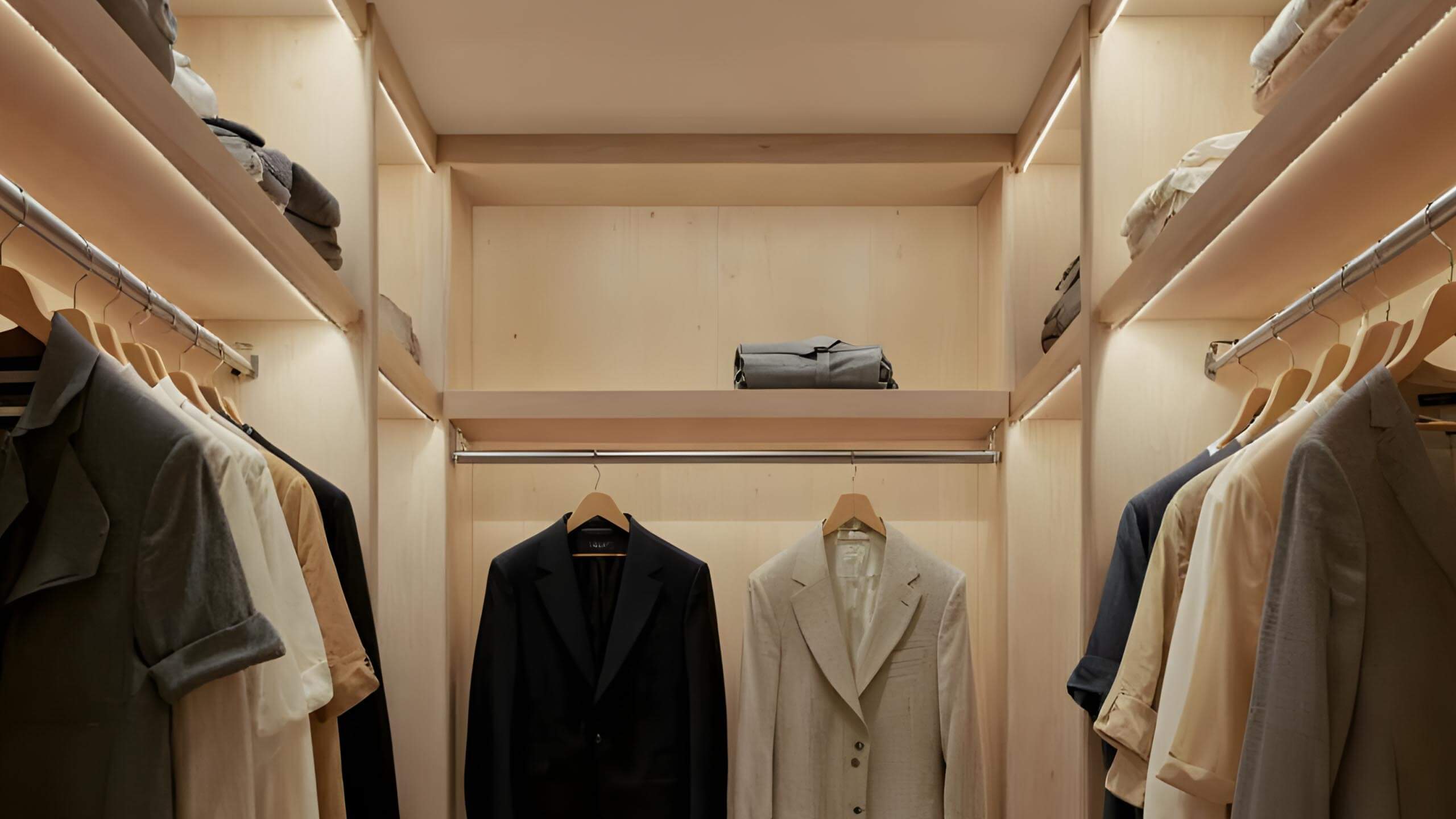

Set at a 45º angle, this profile offers directional or indirect illumination making it ideal for wardrobes, joinery and shelving. It highlights objects with minimal shadows or glare and can also be used for uplighting to create a soft, ambient gradient.

All LED strip lighting requires a suitable driver. This is sold separately as it is determined on the length and wattage of the LED strips you are controlling. Please get in contact with us to discuss your requirements.

Power

5W/m I 10W/m I 15W/m I 20W/m

|
Voltage

24V

Material

Anodised Aluminum I PC Diffuser

Suitability

Indoor

Dimensions

Length 1000mm | Width 22mm | Height 17mm | Depth 16mm

Finish Colour

Aluminium I Textured Black

Colour Temperature

2700K I 3000K I 4000K I 2700K-6500K (Tunable White) I RGB I RGBW

CRI

95+ (R9: >0)

Colour Deviation

Lumen Output

Up to 1812lm/m

LED Type

LED Strip Lighting

Beam Angle

110º

Dimmable

Yes

Expected Lifetime

>50,000h L90B10

Warranty

5 Years

IP Rating

IP20

Cutout Size

Download Spec Sheet
